  1. Security

Data managed by Brainboard

PreviousOCINextSOC 2 Type II

Last updated 8 months ago

Was this helpful?

Overview

Brainboard helps you build and manage cloud infrastructures, which means there are areas where either information are manipulated and/or stored.

  1. Data manipulated: Brainboard will use this information to do some actions but doesn't store it.

  2. Data stored: means that Brainboard keeps this information for future execution.

It also depends on the offering you have the information manipulated and stored are not the same.

Please refer to the if you want to understand all the possibilities you have to use Brainboard.

With the self-hosted version, all your information are stored within your infrastructure. Brainboard has no access to it

Type of data

Here are the types of data used by Brainboard:

  1. Cloud architectures: are the design of your cloud infrastructure.

  2. Cloud resources: all the resources that you use from you preferred cloud provider(s) and their configurations.

  3. .

  4. Secrets: you can choose to store the secrets in your preferred vault solution like AWS KMS, Azure key-vault or HashiCorp Vault and only refer to it through data sources or variables.

    • If you deploy through Brainboard, these secrets will be shared with the runner that will provision the infrastructure.

  5. .

  6. : contains either your GitHub connection or personal git tokens. It may also include the names of your repository and files.

  7. : these credentials allow you to provision or destroy the infrastructure.

  8. Users personal information: We only store the following information about our users:

    • First name

    • Last name

    • Email address

    • Organization name

  9. Pipeline information: it contains information about the provisioning of your infrastructure and the deployment workflow you have.

The auto-generated Terraform code is not store as a Terraform code. This is one of our solid security strategies. In fact, the code is automatically generated every time you need it.

Encryption

All information stored in Brainboard are encrypted at rest and at transit.

Data access scenarios

There are 3 scenarios where data is accessed by Brainboard:

1. Design in Brainboard and push to git

In this scenario:

  • You design your cloud infrastructure in Brainboard

  • Generate the Terraform code in Brainboard

  • Then, you push the generated code into your preferred git repository

  1. Data manipulated by Brainboard:

    • Architecture diagram.

    • Cloud resources and their configuration.

    • Variables.

    • Credentials to access git repo, unless you want to manually download the code and push it from your laptop.

  2. Data stored by Brainboard:

    • Architecture diagram as a JSON structure. Not as a diagram.

    • Cloud resources and their configuration.

    • Variables.

    • Credentials to access git repo.

2. Plan in Brainboard and push to git

In this scenario:

  • You design your cloud infrastructure in Brainboard

  • Generate the Terraform code in Brainboard

  • Do a Terraform plan or trigger the pipeline for the plan in Brainboard

  • Once your architecture is validated, you push the generated code into your preferred git repository

  1. Data manipulated by Brainboard:

    • Architecture diagram.

    • Cloud resources and their configuration.

    • Variables.

    • Terraform state file.

      • If you use a remote backend, Brainboard needs to access it to run some Terraform actions like plan, apply or destroy.

    • Credentials to access git repo, unless you want to manually download the code and push it from your laptop.

    • Cloud provider(s) credentials with at least read-only privilege.

  2. Data stored by Brainboard:

    • Architecture diagram as a JSON structure. Not as a diagram.

    • Cloud resources and their configuration.

    • Variables.

    • Credentials to access git repo.

    • Cloud provider(s) credentials with at least read-only privilege.

3. Design & deploy in Brainboard

In this scenario:

  • You design your cloud infrastructure in Brainboard

  • Generate the Terraform code in Brainboard

  • You may want to push the generated code into your preferred git repository

  • Deploy with Brainboard, either with apply or using our CI/CD engine to trigger your pipelines

  1. Data manipulated by Brainboard:

    • Architecture diagram.

    • Cloud resources and their configuration.

    • Variables.

    • Terraform state file.

    • Cloud provider(s) credentials with read-write privilege.

    • Credentials to access git repo, unless you want to manually download the code and push it from your laptop.

  2. Data stored by Brainboard:

    • Architecture diagram as a JSON structure. Not as a diagram.

    • Cloud resources and their configuration.

    • Variables.

    • Cloud provider(s) credentials with read-write privilege.

    • Credentials to access git repo.

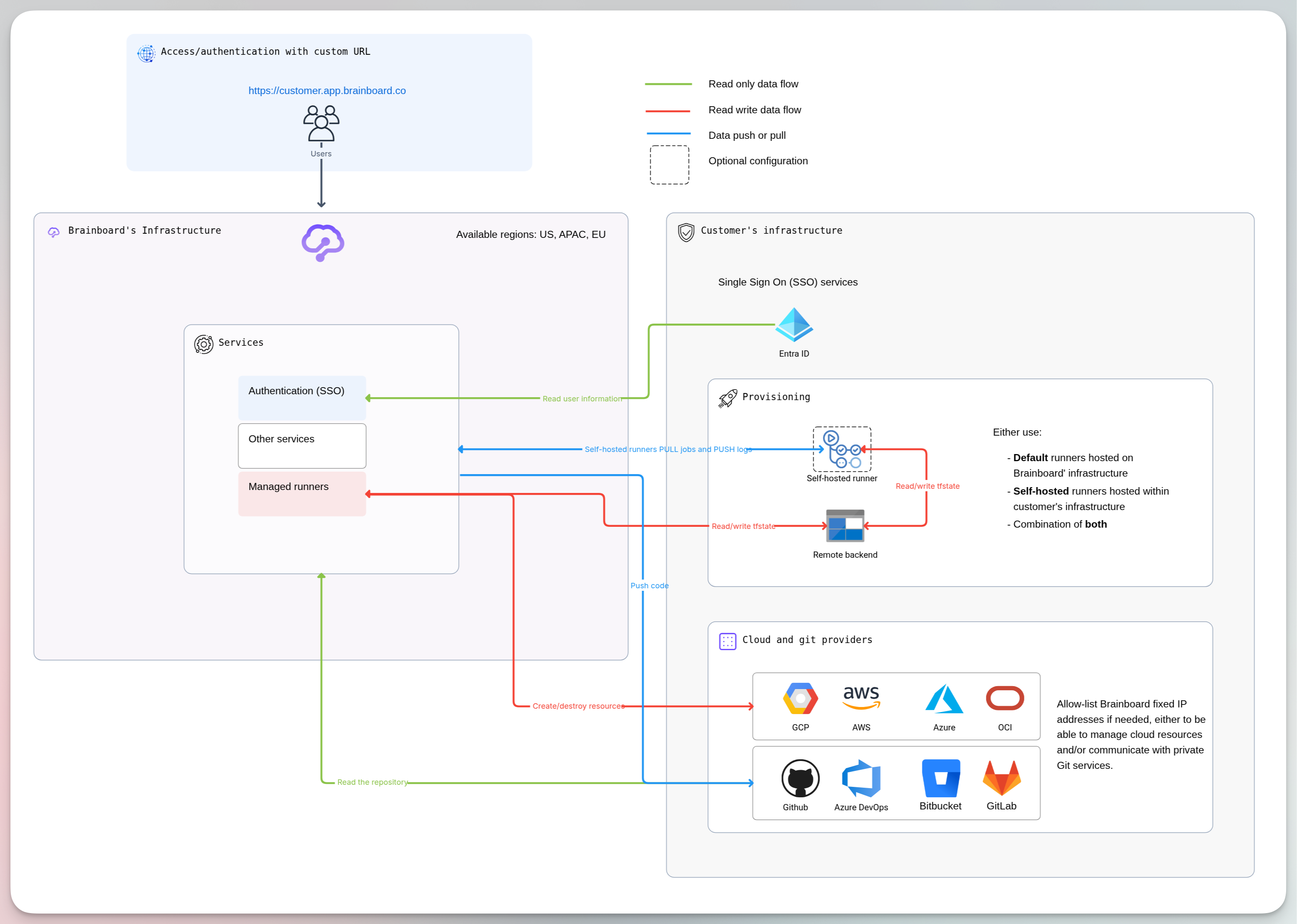

Data flow diagram

Contact us

Reach out to our security team if you have any question related to the security of your data at security@brainboard.co.
